Product Overview

Turn your Vacuum into an Immersion Separator

What it Does:

If you are vacuuming explosive, impact sensitive or unstable materials that may contain an ignition source, Ruwac’s immersion separation systems will reduce risk while keeping your workspace clean. safely collects explosive or glowing media particulates entering the vacuum by immediately mixing them in a turbulent liquid bath. It then rapidly forces moving air and liquid to submerge and neutralize all collected particles. The process stops the already contained materials from finding any possible ignition source that could be introduced to the vacuum, guaranteeing a safe working environment and eliminating risk of an explosion.

The MX360-S

  • 12 Gallon Collection Capacity
  • Pair with up to 300 CFM Vacuum Producer
  • Contact us for your custom configuration
https://www.youtube.com/embed/7ifILUZPhbA

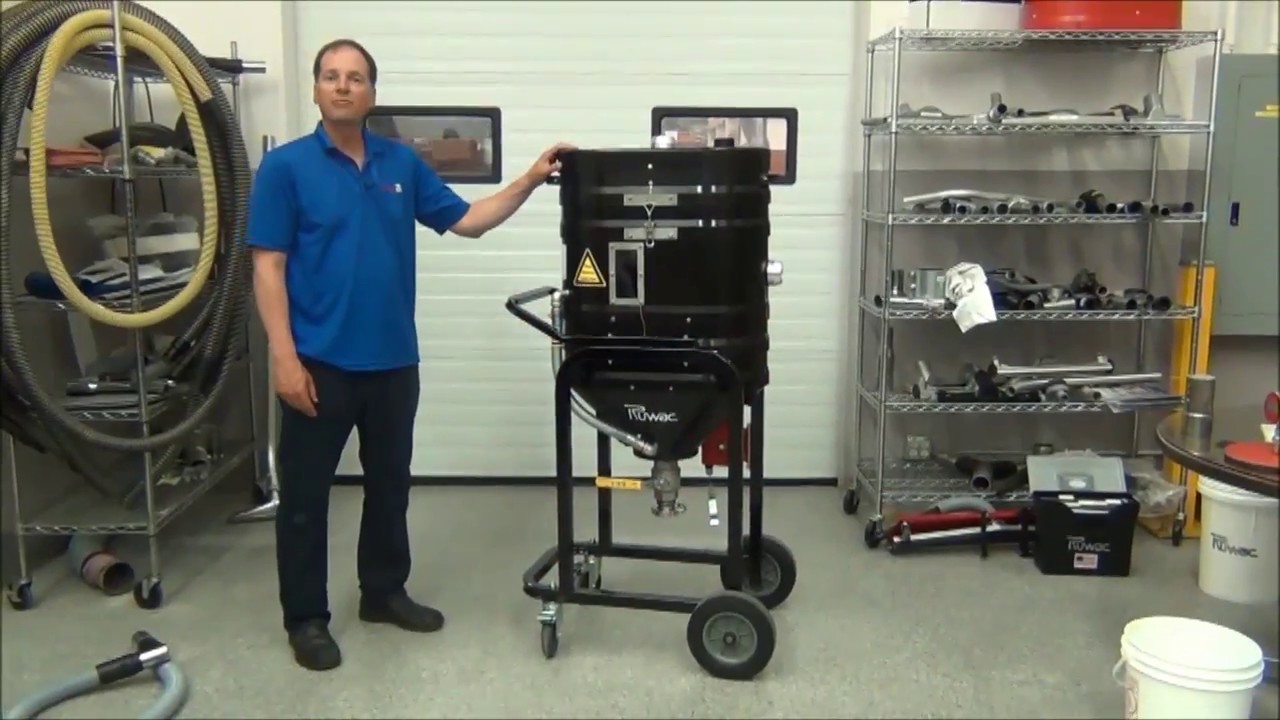

MX360-S

MX360-S

*Video shown with optional chip basket

The NA250

  • 22 Gallon Collection Capacity
  • pair with up to 300 CFM vacuum producer

The NA250 Extended

  • 22 Gallon Collection Capacity
  • pair with up to 300 CFM – 500 CFM vacuum producer
https://www.youtube.com/embed/aahz0lpP9nI

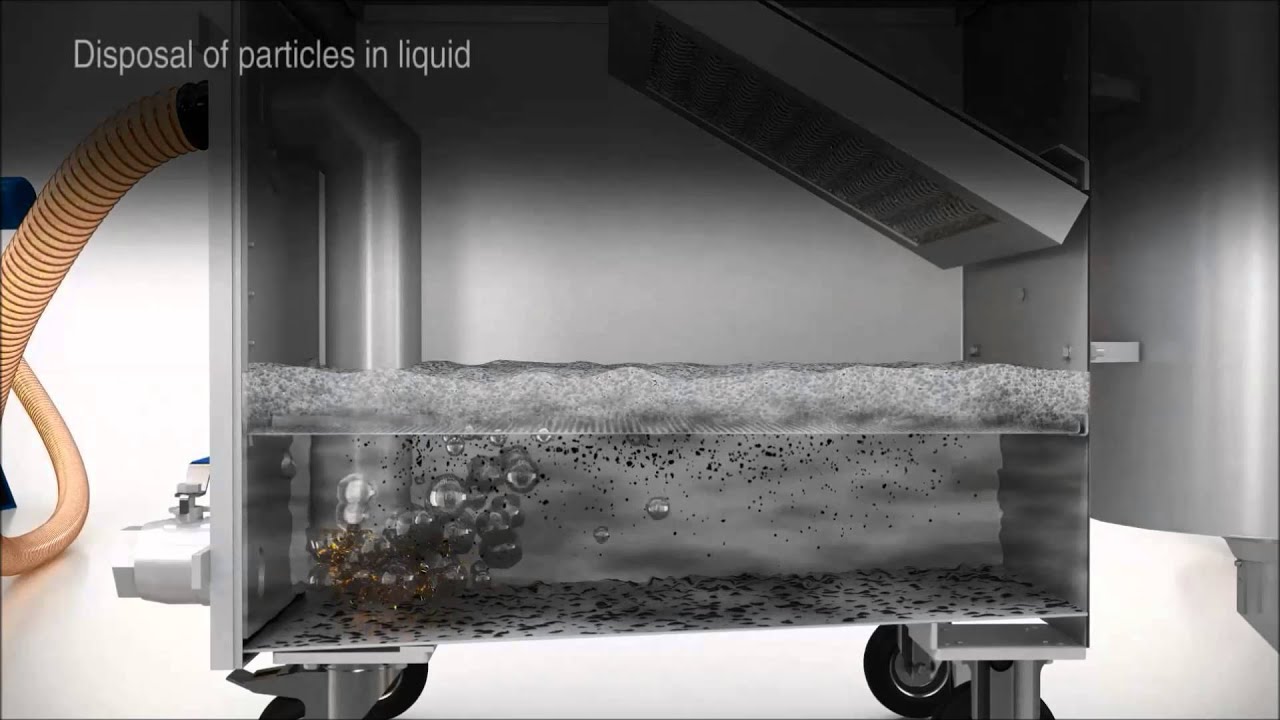

NA250 How it Works

NA250 How it Works



Specifications

*Specs subject to change without notice

MX360-S

CFM Required: Primary Filter Area: Housing Material : Casters: Collection Capacity: Liquid and Solid Material Disposal:
RFQ
:
up to 300 CFM Optional 44 SQFT Hydrophobic Filter Carbon Impregnated Compression Cast Composite Housing Anti-Static 12 Gallons Bottom Discharge Butterfly Valve Request a Quote

NA250

CFM Required: Primary Filter Area: Housing Material : Casters: Collection Capacity: Collection Pan Release:
RFQ
:
up to 300 CFM Optional 118 sq. ft. After Filter Stainless Steel 3" Heavy Duty Non-Marking Double Casters 22 Gallons Full Access Door Request a Quote

NA250-Extended

CFM Required: Primary Filter Area: Housing Material : Casters: Collection Capacity: Collection Pan Release:
RFQ
:
300 CFM - 500 CFM Optional 118 sq. ft. After Filter Stainless Steel 3" Heavy Duty Non-Marking Double Casters 22 Gallons Full Access Door Request a Quote
Features and Benefits
  • Designed to safely collect conductive metals, explosive or impact sensitive materials or glowing media
  • 3 available options for different collection capacities and CFM ranges
  • Heavy duty construction – MADE IN USA
  • liquid bath safely submerges intake materials
  • Hydrogen relief valve allows for the escape of gases
  • Bottom discharge valves for easy waste removal
  • Dispersion screen and demisting pad reduce moisture from traveling into vacuum producer
  • Anti-static casters for complete Earth grounding
  • Compatible for use with inert oil or water for the safe collection of combustible dust
Options

*Specs subject to change without notice

Still Chamber: Pressurized Stilling Chamber for Accurate Water Level Management
Liquiphants: Set of Liquiphants for High and Low Liquid Detection
RF After-Filter: 120 sq. ft. of Additional Hydrophobic Filtration (99.5% @ 0.5 Microns)
