Explosion Proof Dust Collectors

DS2-EX Series Explosion Proof Vacuum
DS2-EX Series Explosion Proof Vacuum
Powerhouse EX w/ HEC-XLT In Action Removing Bulk Coffee Grains
Powerhouse EX w/ XLT Overview

Product Overview

Certified Explosion Proof Dust Collectors

Ruwac’s portable explosion proof dust collectors include an exclusive point of source dust/fume extraction swing arm attached to one of our certified explosion proof vacuum cleaners and are designed specifically to safely collect airborne combustive dust, gasses and smoke emitted from the manufacturing process.

Features:

  • Certified explosion proof dust collectors
  • OSHA / NFPA compliant
  • Portable point-of-source extraction
  • Dual functionality of dust collection and post process dust handling
  • Doubles as a combustible dust housekeeping vacuum unit
  • Up to 500 CFM

Dust Collectors in Action:

https://www.youtube.com/embed/ikuyKAJGChI

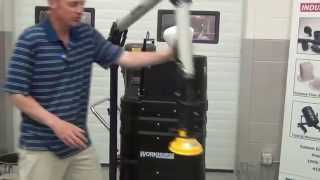

W300EX with Dust Arm
https://www.youtube.com/embed/elm7D3uhPv8
W150EX with Dust Arm
https://www.youtube.com/embed/jkVnmDwk-gw

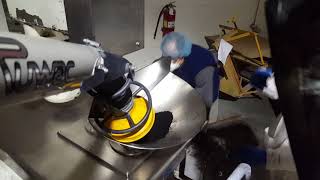

W150EX with Carbon Black
https://www.youtube.com/embed/hrtlLGm9fUI

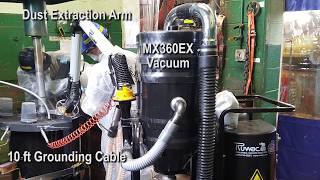

MX360EX Dust Extraction with Aluminum Flake

W300EX with Dust Arm

W150EX with Dust Arm

W150EX with Carbon Black

MX360EX Dust Extraction with Aluminum Flake

Certified Explosion Proof Dust Collectors

Dust Extraction Swing Arm

Specifications

*Specs subject to change without notice

W150EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / Class I Div 1, 2 Group D and Class II Div 1, 2 Groups F & G environments (Group E available) 110/1/60 16 AMPS 1.5 Hp 150 CFM 75" H20 13 SQFT Request a Quote

W300EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / Class I Div 1, 2 Group D and Class II Div 1, 2 Groups F & G environments (Group E available) 230/460/3/60 12/6 AMPS 5 Hp 300 CFM 84" H20 28 SQFT Microclean Technology Request a Quote

P500EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / CI D1 (Group D);CII D1 (Group F,G) 230/460/3/60 25/13 AMPS 10 Hp 500 CFM 94" H20 48 SQFT Microclean Filter Request a Quote

MX360EX Immersion Separator

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Explosion Proof TEFC Motor / Class I, Div 1, 2, Group D, Class II Div 1, 2, Groups E, F & G 110/220/1/60 or 230/460/3/60 16/8 AMPS or 8/4 AMPS 1.5 or 3 Hp 150 - 180 CFM 78" H20 44 sq. ft. hydrophobic Request a Quote
Features and Benefits
  • ETL certified to UL and CSA standards for Class I Div 1, 2 Group D and Class II Div 1, 2 Group F & G applications
  • Zone 22 certified
  • NFPA 652 and 654 compliant industrial vacuum
  • Designed especially for combustible dust situations
  • Continuous duty TEFC explosion proof motor
  • Durable fiberglass reinforced composite housing is static dissipating – electrically insulating ( 10-6 ohms resistance), and will never dent or rust
  • Over sized 48 SQFT Industry-leading MicroClean filtration is 99% efficient @ 0.5 Microns
  • Manual filter shaker system allows you to clean the primary filter without having to disassemble your vacuum
  • 1.5 – 10 HP options and up to 500 CFM
  • Easy-to-empty 24 gallon foot-actuated dustpan
  • Optional HEPA Super Maxx and ULPA filtration for air purification
  • Get a Quote today for an Explosion Proof Dust Collection System
  • Want to see if a Compact Central System will work in your application?
Options

*Specs subject to change without notice

HEC-XLT Bulk Collection Pre-Separation System #9955XLTEX Dust Extraction Arm
Dust Extraction Swing Arm #2004023 Dust Extraction Arm
HEPA Super MAXX: Part #30123 Hose Hanger
