Hybrid Explosion Proof Dust Control Vacuum Systems

DS2-EX Series Explosion Proof Vacuum
DS2-EX Series Explosion Proof Vacuum
Powerhouse EX w/ HEC-XLT In Action Removing Bulk Coffee Grains

Product Overview

Multi Function Explosion Proof Hybrid Dust Collectors

Previously you needed a separate dust collector and a separate industrial vacuum to keep your facility clean of dust and powders. Two separate systems to maintain, operate and empty. The Ruwac explosion proof product line are the first Hybrid,  multi-function machine that can be used for both activities and are NFPA compliant, require no explosion vent and are completely built here in the USA .  So you accomplish two important functions with a single, safe machine. Ruwac units will control dust from a variety of processes where combustible dust is present including mixing, weighing, feeding, blending, grinding and filling operations. Ruwac offers a wide variety of portable Explosion Proof Vacuum Systems starting with 120v up to 20HP 3 phase which are all Hybrid type that permit both dust control and vacuum cleanup in a single portable, cost effective unit.

Want to hook it up to a centralized tubing network for hard to reach areas? The Ruwac Explosion Proof Duct Collection systems can do that as well.

At any time the same unit can be used with dozens of accessories for vacuuming combustible dust and powders from machinery, product spillage, etc.  Models are available in 9, 24 or 30 gal, continuous discharge or direct bagger style.

Features:

  • Certified explosion proof dust collectors
    • Class II Div 2 or
    • Class I Div 1,2 (Group D); Class II Div 1,2 (Group F & G)
  • All systems are under 8 cu. ft, and do not require explosion venting
  • Fully grounded, Fully conductive, Bonded and Grounded Components and Accessories
  • All Vacuum producers fans and motors are protected from dust laden air.
  • OSHA / NFPA compliant
  • Point-of-source extraction
    • Use one of  Ruwac’s dust extraction arms
      • Attach directly to the Ruwac portable vacuum unit or
      • Remotely positioned to processes that are inaccessible to portable equipment
  • Dual functionality of dust collection and post process dust handling.
    • Processes up on a mezzanine can be accessed from the ground floor by means of flexible hose or tubing
  • Doubles as a combustible dust housekeeping vacuum unit

Dust Collectors in Action:

https://www.youtube.com/embed/ikuyKAJGChI

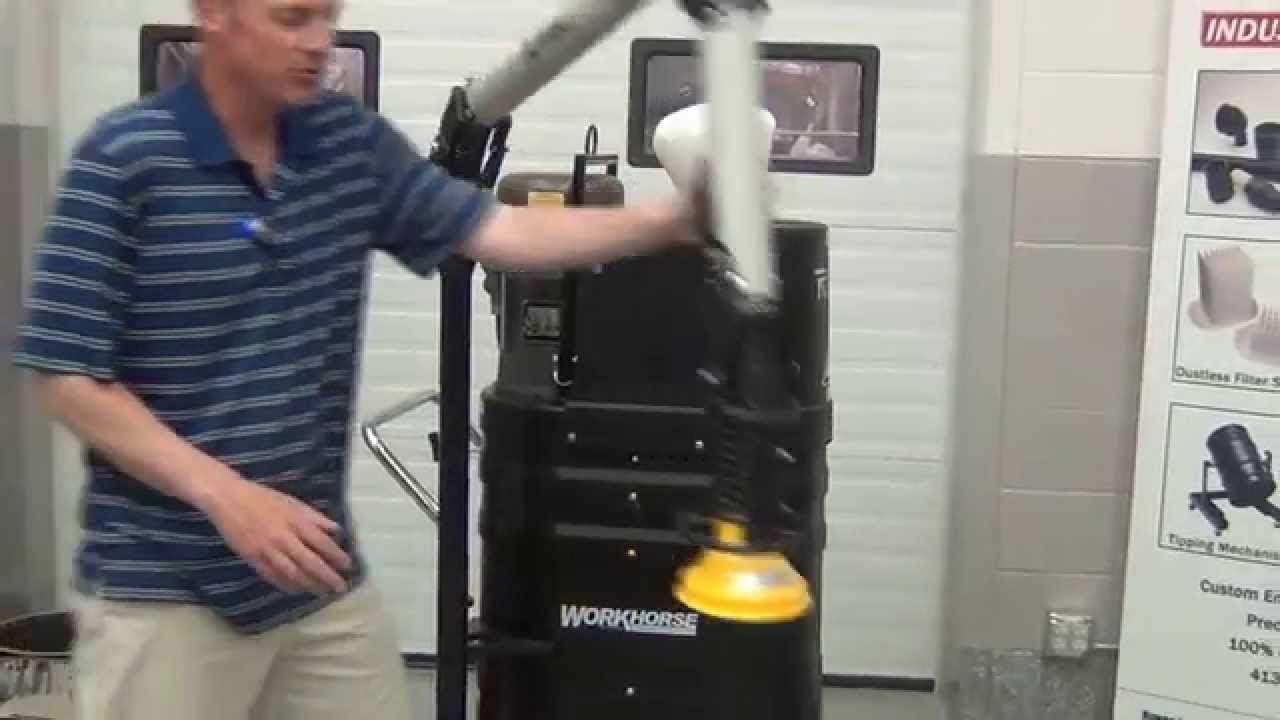

W300EX with Dust Arm
https://www.youtube.com/embed/elm7D3uhPv8

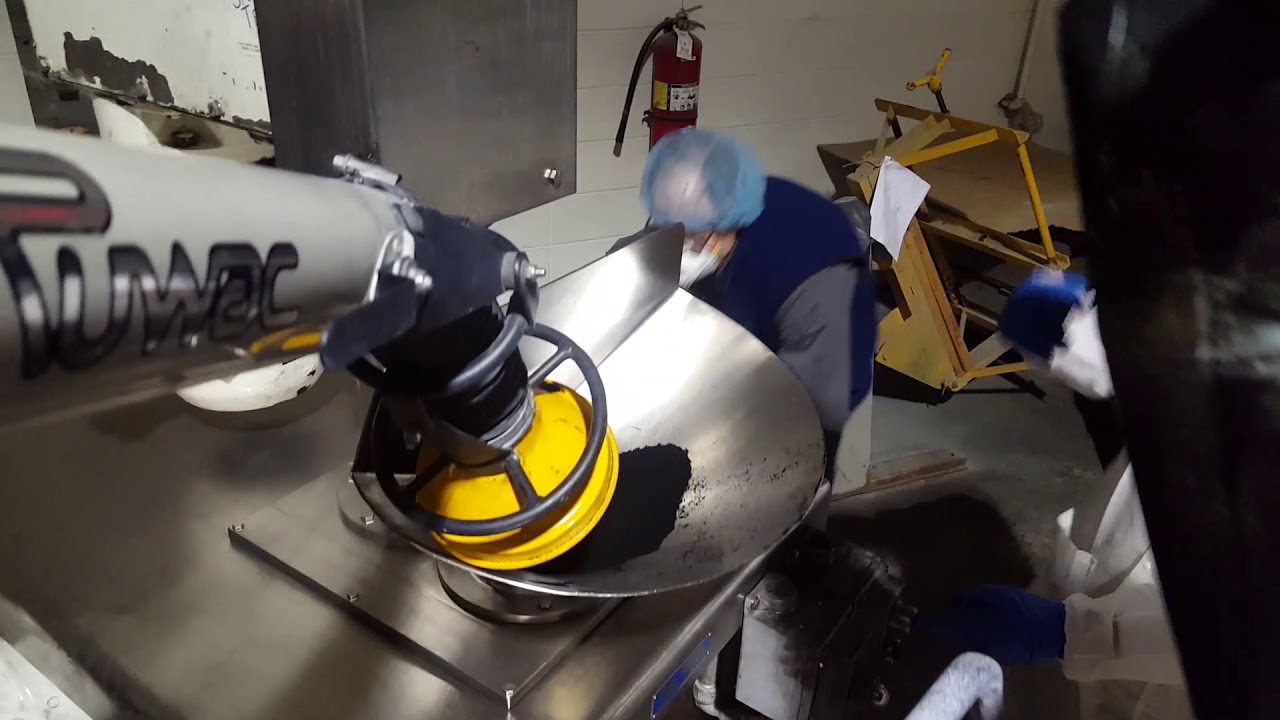

W150EX with Dust Arm
https://www.youtube.com/embed/jkVnmDwk-gw

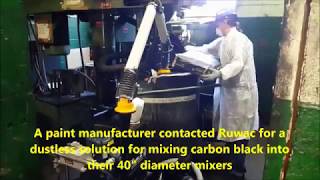

W150EX with Carbon Black
https://www.youtube.com/embed/hrtlLGm9fUI

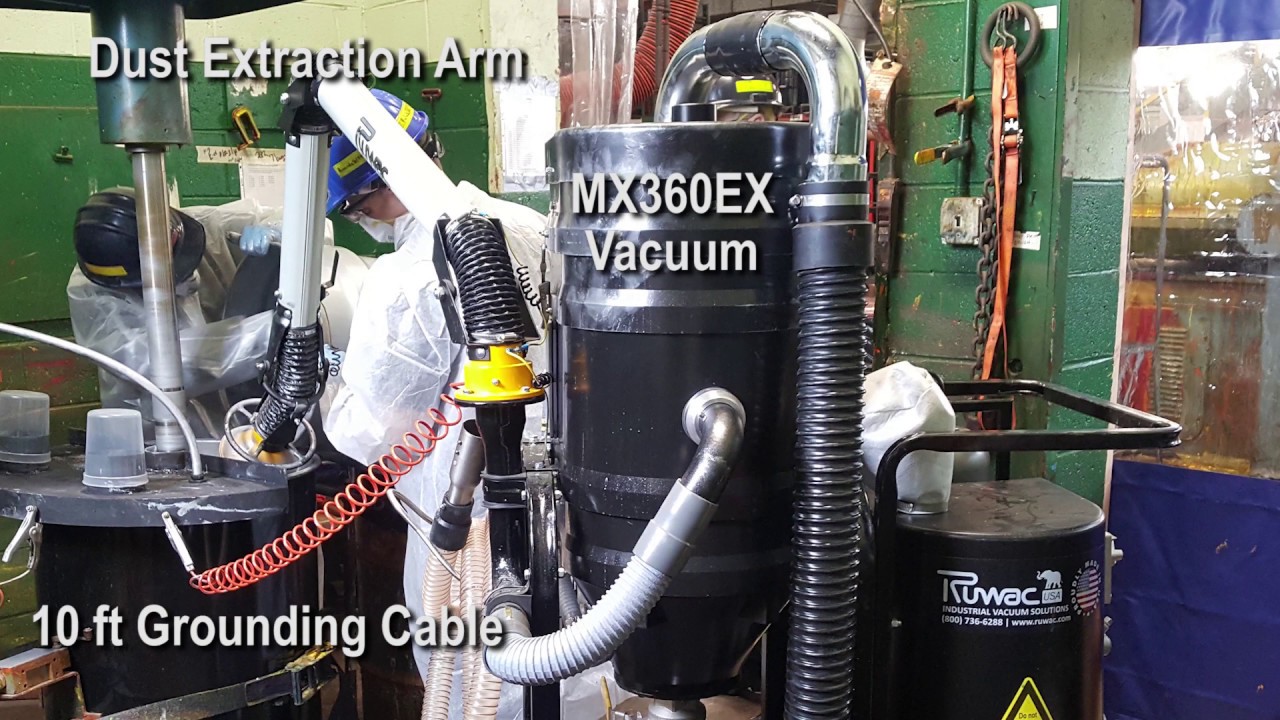

MX360EX Dust Extraction with Aluminum Flake

W300EX with Dust Arm

W150EX with Dust Arm

W150EX with Carbon Black

MX360EX Dust Extraction with Aluminum Flake

Certified Explosion Proof Dust Collectors

Dust Extraction Swing Arm

Specifications

*Specs subject to change without notice

W150EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / Class I Div 1, 2 Group D and Class II Div 1, 2 Groups F & G environments (Group E available) 110/1/60 16 AMPS 1.5 Hp 150 CFM 75" H20 13 SQFT Request a Quote

W300EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / Class I Div 1, 2 Group D and Class II Div 1, 2 Groups F & G environments (Group E available) 230/460/3/60 12/6 AMPS 5 Hp 300 CFM 84" H20 28 SQFT Microclean Technology Request a Quote

P500EX Dust Collector

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Three Phase TEFC Explosion Proof / CI D1 (Group D);CII D1 (Group F,G) 230/460/3/60 25/13 AMPS 10 Hp 500 CFM 94" H20 48 SQFT Microclean Filter Request a Quote

MX360EX Immersion Separator

Motor Rating: Power: AMPS: Hp: CFM: H20": Primary Filter:
RFQ
:
Explosion Proof TEFC Motor / Class I, Div 1, 2, Group D, Class II Div 1, 2, Groups E, F & G 110/220/1/60 or 230/460/3/60 16/8 AMPS or 8/4 AMPS 1.5 or 3 Hp 150 - 180 CFM 78" H20 44 sq. ft. hydrophobic Request a Quote
Features and Benefits
  • ETL certified to UL and CSA standards for Class I Div 1, 2 Group D and Class II Div 1, 2 Group F & G applications
  • Zone 22 certified
  • NFPA 652 and 654 compliant industrial vacuum
  • Designed especially for combustible dust situations
  • Continuous duty TEFC explosion proof motor
  • Durable fiberglass reinforced composite housing is static dissipating – electrically insulating ( 10-6 ohms resistance), and will never dent or rust
  • Over sized 48 SQFT Industry-leading MicroClean filtration is 99% efficient @ 0.5 Microns
  • Manual filter shaker system allows you to clean the primary filter without having to disassemble your vacuum
  • 1.5 – 10 HP options and up to 500 CFM
  • Easy-to-empty 24 gallon foot-actuated dustpan
  • Optional HEPA Super Maxx and ULPA filtration for air purification
  • Get a Quote today for an Explosion Proof Dust Collection System
  • Want to see if a Compact Central System will work in your application?
Options

*Specs subject to change without notice

HEC-XLT Bulk Collection Pre-Separation System #9955XLTEX Dust Extraction Arm
Dust Extraction Swing Arm #2004023 Dust Extraction Arm
HEPA Super MAXX: Part #30123 Hose Hanger
